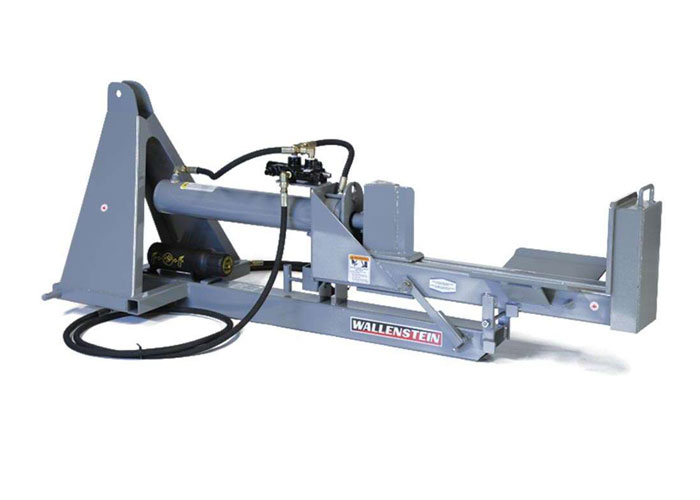

WX370
Horizontal/Vertical Tractor
- Cat I iMatch Quick Hitch Compatible
- Direct Pressure
- Hands Free Return - Auto Neutral
- Vertical and Horizontal Splitting
- Wide Wedge
Specifcations
Split Force
20 Ton
Recommended Hydraulic Flow
10 gpm (38 lpm)
Split Opening
24" (61 cm)
Orientation
Horizontal / Vertical
Average Splitter Cycle Time
6.62 Seconds *depends on flow from tractor
Full Cycle
13.24 Seconds *depends on flow from tractor
Cylinder Diameter
4" (10 cm)
Wedge Height
10" (25 cm)
Total Weight
290 lbs (132 kg)
Dimensions (LxWxH)
86" x 30" x 30" (219 cm x 77 cm x 77 cm)
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible
