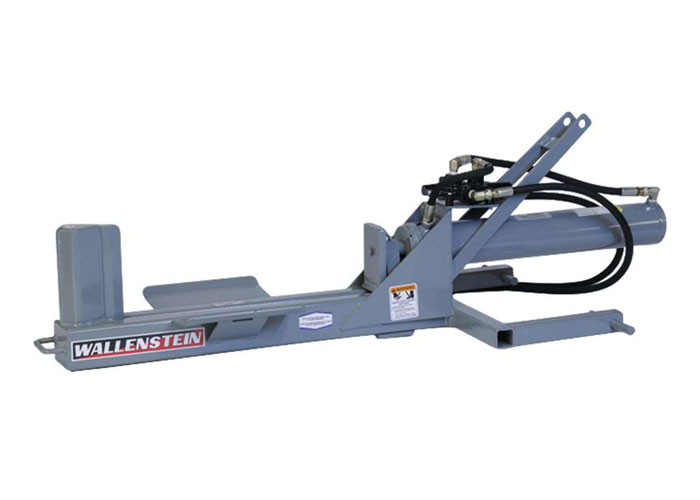

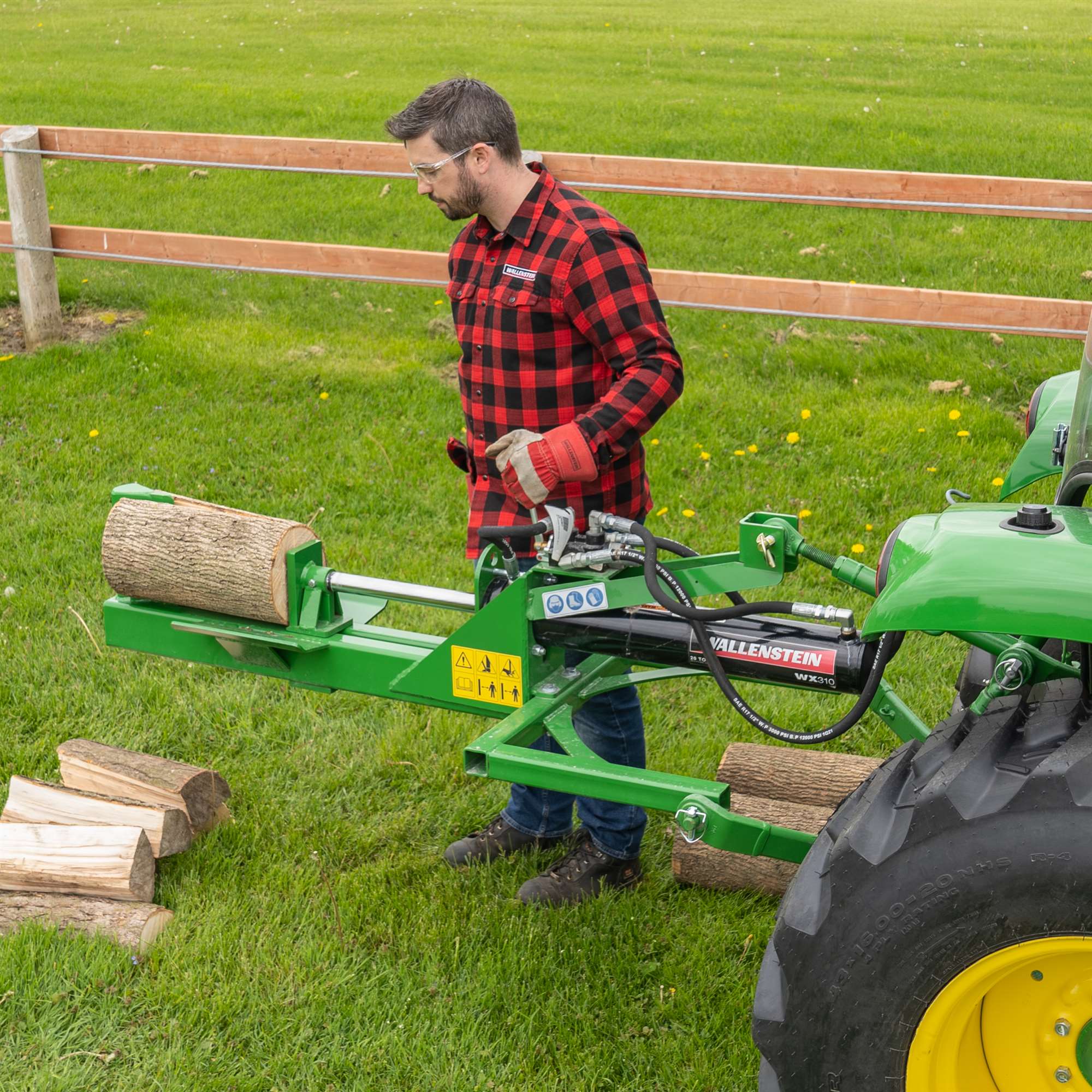

WX310
Horizontal Tractor
- Cat I iMatch Quick Hitch Compatible
- Direct Pressure
- Hands Free Return - Auto Neutral
- Wide Wedge
Specifications
Split Force
20 Ton
Recommended Hydraulic Flow
10 gpm (38 lpm)
Split Opening
24" (61 cm)
Orientation
Horizontal
Average Splitter Cycle Time
6.62 Seconds *depends on flow from tractor
Full Cycle
13.24 Seconds *depends on flow from tractor
Cylinder Diameter
4" (10 cm)
Wedge Height
9" (23 cm)
Total Weight
215 lbs (98 kg)
Dimensions (LxWxH)
70" x 28" x 24" (178 cm x 72 cm x 61 cm)
Mounting System
Cat I, iMatch™ & Quick Hitch Compatible
