RAIS VISIO TUNNEL 2:1RAIS VISIO TUNNEL 2:1
RAIS VISIO TUNNEL 2:1

RAIS VISIO TUNNEL 2:1

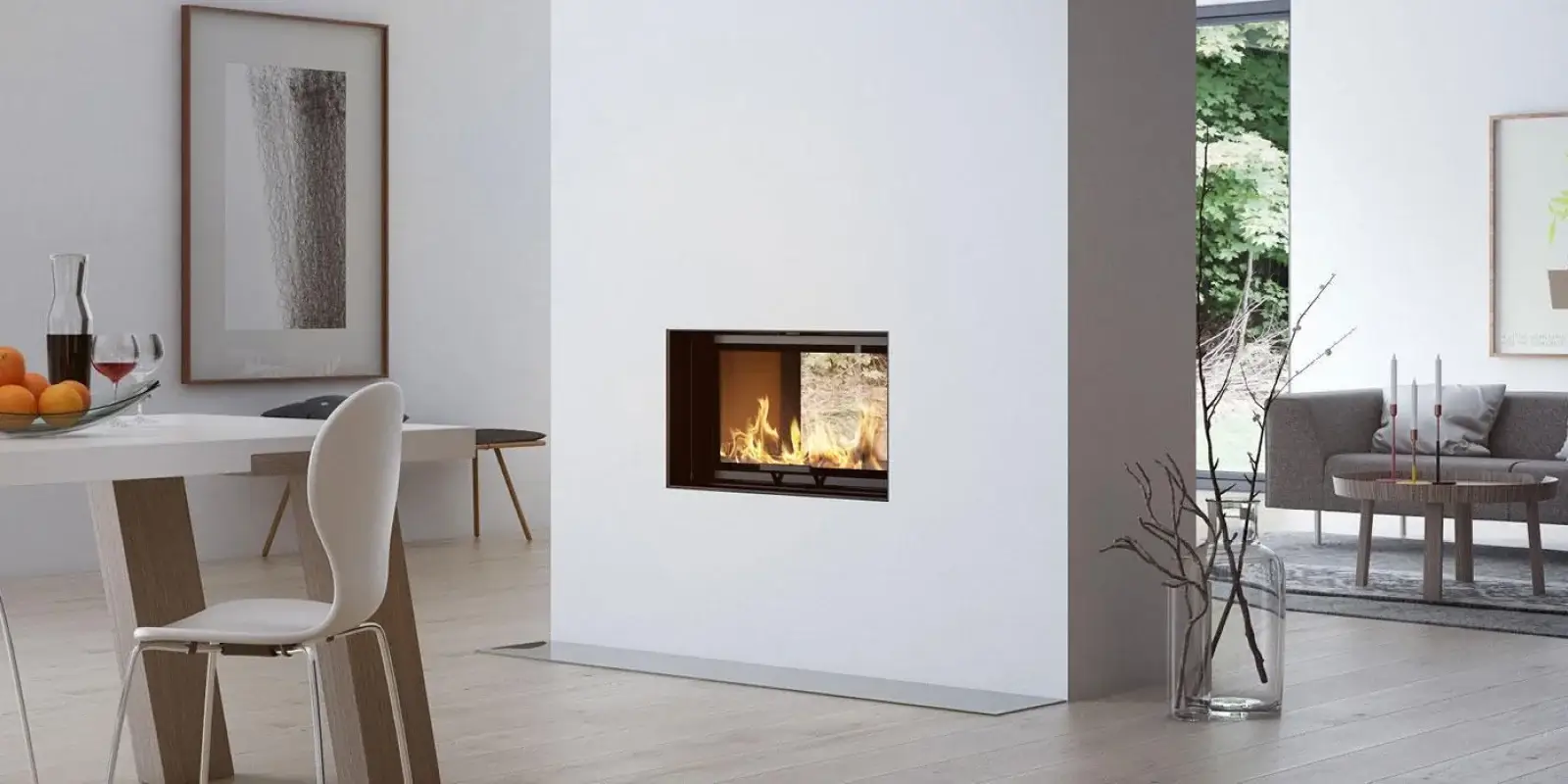

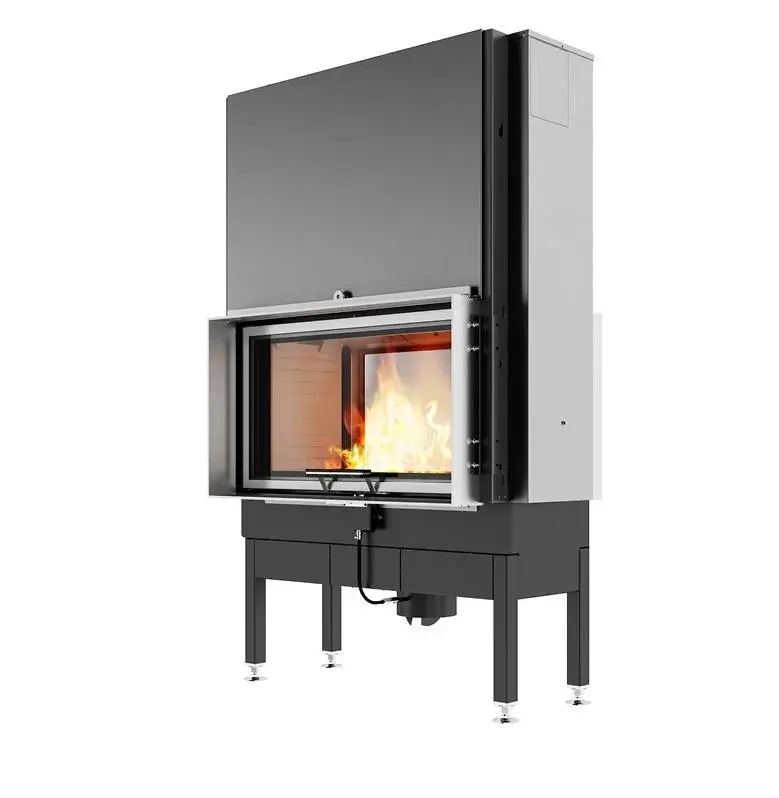

RAIS Visio Tunnel 2:1 makes for a fantastic connection between two individual rooms – or in a partition wall dividing such rooms. As you'll be able to literally see – through the fire! RAIS Visio 2:1 is practically invisible.



The wide design strikes a lasting impression, which is only emphasized by the clear panes. A slim structure makes it easy to fit into the wall.



The elegant expression is emphasized by the vertical sliding system, which ensures top-of-the-line fire. The stove also generates even and pleasant heat – all in all, solid everyday luxury!

TECHNICAL DATA

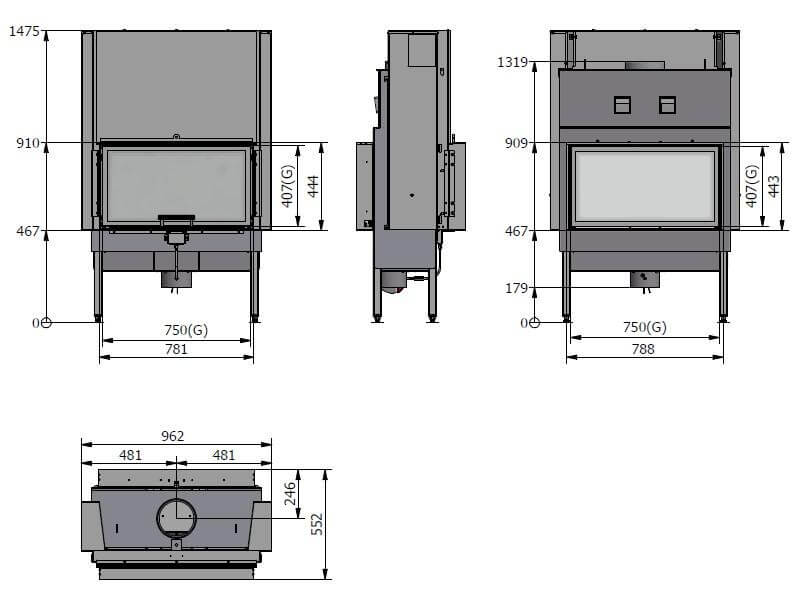

Installation dimensions (W-D-H) in mm788-444
Outer frame dimensions (W-D-H) in mm781-444/788-443
Rated Output (kW)8,6
Distance to flammable material
To side wall in mm350
To the ceiling in mm1182
To the floor in mm475
To furniture1200
Glass door with black edgeStandard
Glass door with rustproof edgeAccessory
Cover frame, blackAccessory
Cover frame, rustproofAccessory



Advanced Glass Concept

All RAIS stoves come with glass that is based on our ADVANCED GLASS CONCEPT®, which uses different types of glass that can vary from stove to stove, but which all serve the same purpose: to create the best conditions for soot-free glass and a gorgeous view of the fire.
